| MOQ: | 1 |
| Price: | $86/pieces |
| Standard Packaging: | Carton |
| Delivery Period: | 15-20work days |
| Payment Method: | T/T |
| Supply Capacity: | 100-1000 |

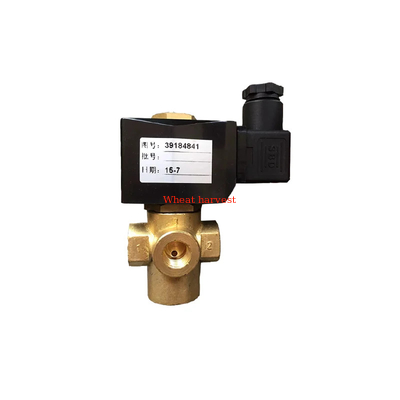

A solenoid valve is an electromechanically operated valve used to control the flow of liquids, gases, or steam in automated fluid systems. It functions by an electric current passing through a solenoid coil, which actuates a plunger to open or close the valve.
✔ Fast & Reliable Switching: Instant response (millisecond actuation time).
✔ Low Power Consumption: Energy-efficient designs (latching types available).
✔ Versatile Configurations: Normally Open (NO), Normally Closed (NC), or Bi-stable.
✔ Wide Material Compatibility: Brass, stainless steel, PTFE, and other corrosion-resistant materials.
✔ Compact & Lightweight: Ideal for tight spaces in automation systems.
| Parameter | Specification |
|---|---|
| Type | Direct-Acting / Pilot-Operated / Semi-Direct |
| Operation | Normally Open (NO) / Normally Closed (NC) / Bi-stable |
| Port Size | 1/8" to 2" (DN3 to DN50) |
| Pressure Range | 0 to 150 psi (standard), up to 500 psi (high-pressure models) |
| Voltage Options | 12V DC, 24V DC/AC, 110V AC, 220V AC |
| Temperature Range | -10°C to +180°C (standard), -40°C to +250°C (specialized) |
| Body Material | Brass / Stainless Steel (SS304, SS316) / Plastic (PVC, PTFE) |
| Seal Material | NBR / EPDM / FKM (Viton) / PTFE |
| Flow Medium | Air, Water, Oil, Steam, Aggressive Chemicals |
| Response Time | <50ms (for small valves) |
| Duty Cycle | Continuous (100%) / Intermittent |
| Protection Rating | IP65 (dust-proof & water-resistant) / IP67 (waterproof) |
| Standards | RoHS, CE, ATEX (for explosive environments) |
Industrial Automation: Pneumatic/hydraulic control systems.
Water & Irrigation: Automated water flow control.
HVAC & Refrigeration: Refrigerant and coolant regulation.
Medical & Laboratory Equipment: Precise fluid handling.
Fuel & Gas Systems: Solenoid shut-off valves for safety.
Direct-Acting: Best for low-pressure, small-flow applications.
Pilot-Operated: Suitable for high-flow, high-pressure systems.
Bi-Stable (Latching): Energy-saving, maintains position without power.
Need wiring diagrams, flow coefficients (Cv), or explosion-proof options? Let me know!
|
|
