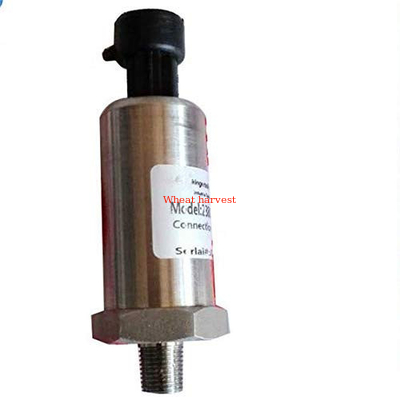

Ingersoll-Rand 47614695001 Pressure Sensor Strip Line for Air Compressors
  • name
  • name
  • name
  • name

Ingersoll-Rand 47614695001 Pressure Sensor Strip Line for Air Compressors

MOQ: 1
Price: USD60/pcs
Delivery Period: 15-20work days
Payment Method: T/T
Supply Capacity: 100-1000
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Ingersoll-Rand
Model Number
47614695001
Highlight:

High Quality Pressure Sensor Strip Line

,

47614695001 Pressure Sensor Strip Line

Product Description
Ingersoll-Rand Pressure Sensor Strip Line 47614695001 High Quality Screw Air Compressor Parts Wholesale
Product Introduction: Pressure Sensor Strip Line
What is a Pressure Sensor Strip Line?
A Pressure Sensor Strip Line is a flexible, linear array of multiple pressure sensing elements (sensels) embedded into a thin, strip-like form factor. Unlike a single-point pressure sensor that measures force at one specific location, a strip line provides a continuous pressure profile or pressure distribution along its entire length. It transforms a one-dimensional force measurement into a rich data set, revealing information about contact, alignment, presence, and even distribution of weight or force over a linear path.
Key Functions & Purposes
The core function of a pressure sensor strip is to map and quantify pressure distribution across a line. Its specific purposes include:
  • Pinch Detection: Safely monitoring areas where objects or parts could close together (e.g., automotive windows, sunroofs, industrial doors, robot grippers).
  • Alignment & Positioning: Verifying the correct alignment of components during assembly or manufacturing processes.
  • Presence & Level Sensing: Detecting the presence, absence, or approximate level of materials.
  • Load Distribution Analysis: Measuring how force is distributed along linear bearings or support structures.
  • Tactile Sensing: Providing touch or contact sensing for robotics and automation.
How It Works (Operating Principle)
A typical strip line operates based on force-sensitive resistor (FSR) or capacitive sensing technology:
  1. Sensing Elements: Multiple individual sensing points (sensels) are embedded at regular intervals.
  2. Force Application: Pressure deforms the sensing element at that location.
  3. Electrical Change (FSR): Applied force causes a change in electrical resistance.
  4. Electrical Change (Capacitive): Applied force changes capacitance between conductive layers.
  5. Signal Output: Controller scans sensels and converts values to digital output.
  6. Data Interpretation: Software creates real-time pressure maps or triggers actions.
Key Features & Benefits
Feature Benefit
High Resolution Multiple sensing points provide detailed pressure data
Flexibility & Conformability Thin design allows mounting on curved surfaces or tight spaces
Simple Integration Easy connection to microcontrollers, PLCs, or data systems
Durability Robust materials withstand repeated loading and harsh environments
Customizable Available in different lengths and pressure sensitivity ranges
Common Types & Configurations
Type Description Primary Application
FSR-Based Strip Uses force-sensitive resistor ink Pinch detection, basic presence sensing
Capacitive Strip Uses changes in capacitance between electrodes High-resolution pressure mapping
High-Temp/Sealed Strips Special materials for extreme conditions Food processing, automotive under-hood
Technical Specifications
  • Sensing Length: Customizable active length
  • Sensel Resolution: Configurable spacing between sensing points
  • Pressure Sensitivity Range: From 0.1 to 100 psi options
  • Output Signal: Analog voltage, analog resistance, or digital (I2C/SPI)
  • Operating Temperature: -20°C to +85°C standard
Industries & Applications
  • Automotive: Pinch detection in windows and sunroofs; seat belt tension sensing
  • Robotics & Automation: Tactile feedback in robotic grippers; part placement verification
  • Industrial Machinery: Nip point safety on rollers; bearing load monitoring
  • Medical: Pressure monitoring in orthopedic braces and prosthetics
Why Choose Our Pressure Sensor Strip Lines?
  • Application-Specific Engineering: Custom-configured strips tailored to your exact requirements
  • Robust & Reliable Design: Industrial durability with high repeatability
  • Easy-to-Use Interface: Comprehensive documentation and sample code provided
  • Expert Technical Support: Assistance from concept to production
Ordering Information
To select the correct pressure sensor strip line, please provide:
  • Application Description
  • Required Sensing Length & Width
  • Desired Pressure Range
  • Output Signal Preference
  • Environmental Conditions
Unlock new insights into force and contact. Contact our sensing specialists today to prototype a solution for your unique application.
