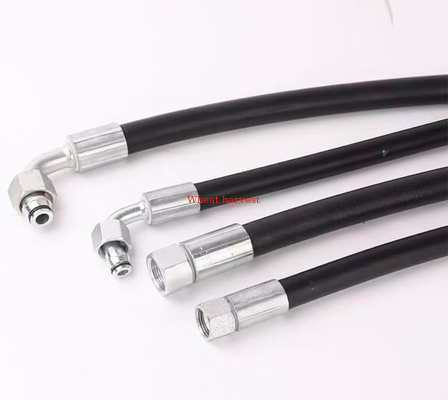

Atlas Air Compressor Oil Pipe 2903100313 High Pressure Hydraulic Tube
  • name
  • name
  • name
  • name

Atlas Air Compressor Oil Pipe 2903100313 High Pressure Hydraulic Tube

MOQ: 1
Price: USD27/pcs
Delivery Period: 15-20 work days
Payment Method: T/T
Supply Capacity: 100-1000
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Atlas
Model Number
2903100313
Highlight:

Atlas air compressor oil pipe

,

Atlas Copco spare parts

,

compressor replacement oil pipe

Product Description
Atlas Oil Pipe 2903100313 - High Quality Spare Parts for Air Compressors
Product Introduction: Hydraulic & Industrial Oil Pipe
What is an Oil Pipe?
An oil pipe is a specialized conduit designed for the efficient and safe transportation of hydraulic fluids, lubricants, fuels, and other industrial oils within a system. Engineered to withstand high pressures, temperature fluctuations, vibration, and potential chemical aggression, these pipes serve as the essential vascular system of machinery, ensuring that oil reaches critical components without leakage or failure.
Key Functions & Purposes
  • Power Transmission: Transporting high-pressure hydraulic fluid to transfer power throughout a system.
  • Lubrication Delivery: Supplying lubricating oil to bearings, gears, and other moving parts to reduce friction and wear.
  • Fuel Transfer: Delivering fuel from tanks to engines or combustion systems.
  • Heat Transfer: Circulating oil as a cooling medium in heat exchangers and cooling systems.
  • Return Lines & Drainage: Providing a path for oil to return to the reservoir or sump.
Key Features & Benefits
Feature Benefit
High-Pressure Resistance Constructed from high-strength materials and designed to withstand system surge pressures without bursting.
Corrosion & Erosion Resistance Internal and external coatings protect against rust from moisture and wear from fluid-borne particles.
Seamless Construction Eliminates potential weak points for leaks or failures.
Precise Dimensions Ensures predictable flow characteristics and proper fitting attachment.
Durability & Fatigue Resistance Withstands constant vibration, pressure cycles, and mechanical stress for long service life.
Cleanliness Internally clean and often pre-treated to prevent contamination of sensitive hydraulic systems.
Common Types of Oil Pipes
Type Description Primary Application
Seamless Steel Hydraulic Tube Cold-drawn, precision-sized tubing with a smooth interior finish. High-pressure hydraulic lines and manifolds.
Hydraulic Hose Assembly Flexible hose with reusable or crimped fittings on each end. Connections between moving components where flexibility is required.
Welded & Drawn (W&D) Tube Welded seam that is then drawn through a die to smooth the interior. Medium-pressure hydraulic systems and lubrication lines.
Stainless Steel Tube Offers superior corrosion resistance for harsh environments. Marine applications, chemical processing, food & beverage machinery.
Carbon Steel Pipe (Schedule) Thick-walled, threaded, used for larger diameter supply and return lines. Low-pressure oil return lines and large-volume transfer.
Copper & Brass Tubing Easily bent and corrosion-resistant, but not for high pressures. Low-pressure lubrication systems and instrument lines.
Technical Specifications
  • Size Range: From small capillary tubes (¼" OD) to large diameter pipes (several inches).
  • Pressure Rating: Varies by type; seamless tubes can handle several thousand PSI.
  • Temper: Annealed (soft for bending) or hard-drawn (for straight runs).
  • Material: Carbon Steel (ST37, ST52), Stainless Steel (304, 316L), Copper, Aluminum.
  • Standards: Manufactured to DIN 2391, ASTM A179, SAE J525.
  • Surface Treatment: Phosphated, Galvanized, Pickled & Oiled.
Industries & Applications
Oil pipes are critical in virtually every sector that uses fluid power or lubrication including mobile hydraulics, industrial machinery, power generation, transportation, marine & offshore, and mining & forestry.
Selection Guide: How to Choose the Right Oil Pipe
Consider these factors when selecting an oil pipe:
  • Operating Pressure: Choose a pipe with a pressure rating exceeding the system's maximum working pressure.
  • Fluid Compatibility: Ensure the pipe material is chemically compatible with the oil type.
  • Environment: Consider temperature, exposure to chemicals, saltwater, UV radiation, and abrasion.
  • Flexibility vs. Rigidity: Use rigid tubing for fixed layouts and flexible hose where movement is needed.
  • Size (ID & OD): Inner diameter must maintain acceptable flow velocity; outer diameter must match standard port sizes.
Why Choose Our Oil Pipes?
  • Certified Quality: Manufactured to exacting international standards with full material traceability.
  • Superior Performance: Excellent surface finish minimizes friction and pressure loss.
  • Expert Technical Support: Our team helps select the right material and specification for your application.
  • Complete Range: Comprehensive inventory of tubing, hose, and fittings.
  • Customization: Cutting, bending, and threading services available.
Ordering Information
To select the correct oil pipe, please provide: application, fluid type, operating pressure, operating temperature, required dimensions, length & configuration, material & finish, and required standards/certifications.
