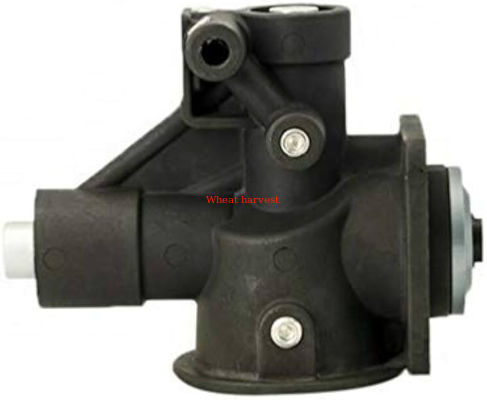

Atlas Unloader Valve 1613756884 for Air Compressors 125 PSI

An Unloader Valve is a critical pneumatic control device primarily used in reciprocating air compressors. Its essential function is to relieve the pressurized air trapped in the compressor's cylinder head after the motor shuts off. This "unloading" action allows the motor to restart against little to no backpressure, significantly reducing starting torque and preventing motor overload and potential failure.

During operation, it also plays a key role in managing compressor output by bleeding excess air to control system pressure.

• Motor Protection & Easier Starts: The primary benefit. By venting internal pressure, it eliminates the high starting torque required to overcome head pressure, protecting the motor, starter, and electrical components from excessive strain and burnout. This is crucial for compressors with single-phase motors.
• Energy Efficiency: Prevents the compressor from operating in "load" mode unnecessarily. In some systems, it allows the motor to run unloaded while the receiver is full, saving significant energy compared to continuous load cycling.
• Extended Compressor Life: Reduces mechanical stress on the pump, crankshaft, bearings, and connecting rods during startup, leading to less wear and a longer operational lifespan for the entire compressor.
• Pressure Regulation: Works in tandem with the pressure switch to maintain system pressure within a preset band (e.g., cut-in at 100 PSI, cut-out at 125 PSI), ensuring consistent tool performance.
• Durable Construction: Built from high-quality, corrosion-resistant materials like brass, aluminum, or coated steel to withstand continuous exposure to moisture, compressed air, and system vibrations.
• Reliable Diaphragm & Seals: Features a robust, flexible diaphragm and precision seals designed for millions of cycles, ensuring long-term, leak-free operation.

The valve operates automatically in sync with the compressor's pressure switch:

1. At Shutdown (Unloading):
   • When tank pressure reaches the "cut-out" level, the pressure switch cuts power to the motor.
   • Simultaneously, the switch triggers the unloader valve (usually via a pilot line or mechanical linkage).
   • The valve opens, venting all compressed air from the compressor's discharge line and cylinder head to atmosphere.
   • The compressor is now "unloaded" and ready for an easy start.
2. At Startup:
   • The motor starts against zero head pressure.
   • After a brief delay, the unloader valve closes.
   • The compressor begins to pump air and build pressure in the tank ("loading").
3. During Operation (if equipped for continuous bleed): Some unloader valves allow a small, continuous bleed of air while the compressor is unloaded to keep the pump from loading, which is useful for certain control strategies.

The unloader valve is an indispensable component in:

• Reciprocating Air Compressors: The most common application, found on virtually all stationary and larger portable reciprocating models.
• Compressed Air Systems: Ensuring the reliable and efficient operation of workshops, garages, manufacturing cells, and production lines.
• Systems with Automatic Start/Stop Control: Any setup where the compressor motor cycles on and off based on demand.
• Applications with High Cyclic Demand: Environments where the compressor starts and stops frequently.

• Precision Engineering: Designed for fast response and reliable sealing, ensuring complete pressure release for easy starting every time.
• Proven Compatibility: Engineered to meet or exceed OEM specifications for a wide range of compressor brands and models, making it a perfect replacement part.
• Enhanced Durability: Our valves are tested for high cycle counts and built to resist the damaging effects of moisture and contaminants in compressed air systems.
• Easy Installation & Maintenance: Designed for straightforward replacement, with common port threads and easy-to-access connections.
• Energy Savings: By ensuring easy starts and proper system pressure control, our valve directly contributes to reducing your electricity consumption.
