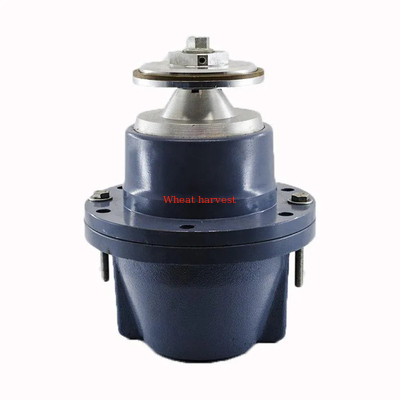

Atlas Minimum Pressure Valve 30-100 psi for Air Compressors
  • name
  • name
  • name
  • name

Atlas Minimum Pressure Valve 30-100 psi for Air Compressors

MOQ: 1
Price: USD343/pcs
Standard Packaging: carton
Delivery Period: 15-20 work days
Payment Method: T/T
Supply Capacity: 100-1000
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Atlas
Model Number
1614647680
Highlight:

1614647680 Atlas Minimum Pressure Valve

,

Screw Air Compressor Pressure Valve

Product Description
Atlas Minimum Pressure Valve 1614647680 - High Quality Screw Air Compressor Parts
Product Overview

A Minimum Pressure Valve (MPV) is a critical safety and efficiency component used in compressed air systems, particularly in rotary screw compressors. It maintains system pressure above a preset minimum level to ensure proper lubrication flow, prevent oil foaming, and protect downstream equipment from pressure drops.

Key Features
  • Pressure Regulation - Maintains minimum required system pressure
  • Compressor Protection - Ensures adequate lubrication pressure
  • Energy Efficient - Reduces unnecessary cycling
  • Durable Construction - Built for continuous operation
  • Fail-Safe Design - Prevents system depressurization
Technical Specifications
Parameter Description Typical Values/Specifications
Valve Type Spring-loaded, Pilot-operated Varies by compressor size
Port Size Connection size (inlet/outlet) 1/2" to 4" (DN15 to DN100)
Pressure Range Operating pressure range 15 to 250 psi (1 to 17 bar)
Set Pressure Minimum pressure setting (adjustable) 30-100 psi (2-7 bar)
Flow Capacity Maximum air flow rate 50 to 3000 CFM (85 to 5100 m³/h)
Leakage Rate Maximum allowable leakage at closed position <0.1% of rated flow
Response Time Time to open/close <1 second
Body Material Construction material Cast Iron, Ductile Iron, Stainless
Seal Material Sealing components Nitrile, Viton®, EPDM
Temperature Range Operating temperature limits -20°C to 120°C (-4°F to 248°F)
Mounting Type Installation configuration Flanged, Threaded
Certifications Industry standards ISO 1217, PED, ASME
Applications
  • Rotary Screw Compressors (Oil-injected and oil-free)
  • Compressed Air Systems (Industrial plants, workshops)
  • Air Treatment Units (Aftercoolers, dryers)
  • Pneumatic Conveying Systems (Material handling)
  • Process Air Systems (Food, pharmaceutical industries)
Benefits
  • Protects compressor from lubrication failure
  • Maintains system efficiency by preventing pressure drops
  • Reduces maintenance costs by preventing oil carryover
  • Easy to install and adjust for different pressure settings
  • Long service life with robust construction

Would you like additional information on installation procedures, troubleshooting, or specific brand recommendations?
