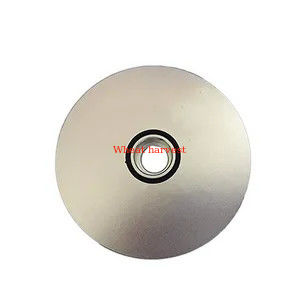

Atlas Intake Valve Plate 1613681801 for Air Compressors

The Intake Valve Plate is a critical consumable component within an intake valve assembly, typically found in reciprocating compressors and pumps. It acts as the primary sealing surface that opens to allow fluid (air, gas, or refrigerant) into the compression chamber and closes to seal it during the compression cycle. Its precise operation is fundamental to the volumetric efficiency, pressure ratio, and overall performance of the machine. Essentially, it is the dynamic seal that makes compression possible.

• Precision Machining: Manufactured to extremely tight tolerances to ensure a perfect, leak-tight seal against the valve seat, minimizing internal leakage and maximizing compressor efficiency.
• Advanced Material Science: Forged from high-grade materials selected for specific applications:
  • Spring Steel: Offers excellent fatigue resistance and mechanical strength for high-cycle applications.
  • Stainless Steel (410, 304): Provides superior corrosion resistance for wet or chemical-laden environments.
  • Polymer-Composites (PEEK, PTFE): Used in lightweight, low-inertia designs for high-speed compressors and for compatibility with certain gases.
• Optimized Design: Engineered for:
  • Low Inertia: Allows for rapid opening and closing, reducing lag and improving response at high RPMs.
  • High Strength: Withstands repetitive impact forces and high-pressure differentials without fracturing.
  • Perfect Geometry: The profile (often beveled or contoured) is designed to promote smooth airflow and secure seating.
• Surface Enhancement: Many plates feature surface treatments like nitriding, chrome plating, or specialized coatings to enhance hardness, reduce wear, and extend service life significantly.
• Thermal Stability: Designed to maintain its shape and mechanical properties under the fluctuating temperatures of the compression cycle.

1. Intake Stroke: The piston moves down, creating a pressure differential that overcomes the spring force and the plate's inertia.
2. Valve Opens: The valve plate lifts off its seat, flexing slightly and allowing the intake gas to flow into the cylinder.
3. End of Stroke: The piston reaches the bottom of its stroke, and pressure equalizes. The spring force pushes the plate back towards the seat.
4. Compression Stroke: The piston moves up, increasing pressure in the cylinder. This pressure, combined with the spring, forces the plate firmly against its seat, creating a hermetic seal for the compression and discharge cycle.

• Reduced Efficiency: A warped or eroded plate cannot seal properly, causing blow-by (gas leaking back into the intake). This forces the compressor to work longer and harder, wasting energy.
• Loss of Capacity: The compressor will fail to achieve its rated pressure or flow (CFM), disrupting downstream processes.
• Overheating: Internal leakage caused by a faulty plate can lead to abnormal heating of the compressor.
• Catastrophic Damage: A plate that shatters can send debris through the entire compression system, causing extensive and expensive damage to pistons, cylinders, and heads.

This component is essential in any industry utilizing reciprocating compression technology:

• Industrial Air Compressors: The backbone of plant air systems.
• Refrigeration & HVAC Compressors: Critical for refrigerant compression in chillers and cooling systems.
• Gas Compression: For natural gas processing, transmission, and CNG.
• Automotive: In air brake systems for heavy-duty trucks.
• Process Industries: For handling specialized gases in chemical and petrochemical plants.

• OEM Interchangeability: Precisely engineered to match or exceed the specifications of original equipment manufacturer (OEM) parts, ensuring perfect fit and performance.
• Proven Durability: Rigorously tested for cycle life, fatigue resistance, and impact strength to ensure reliability in the most demanding environments.
• Performance Guarantee: Using our valve plates restores your compressor to its original efficiency and capacity, reducing energy costs.
• Expert Support: We provide technical data to help you select the correct plate material and design for your specific operating conditions (gas type, pressure, temperature).
